| FEATURES: |
| • |
249 racks / 996 covers per
hour |
| • |
Uses only .46 gallons of
water per rack |
| • |
Automatic water control system |
| • |
Automatic “Start/Stop”
makes operation more efficient |
| • |
Single control switch activation |
| • |
“Built-In”
scrap accumulator easily removeable for cleaning |
| • |
Stainless Steel
construction for durability |
| • |
ENERGY
STAR approved. Low energy and water consumption |
|
|
|
|
|

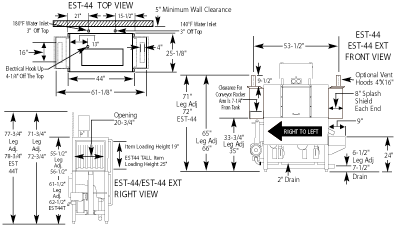

MACHINE
MEASUREMENTS:
(Call for details on plumbing/electrical
requirements) |
|
|
Call M-F 7:30am - 4:00pm
(PST) at 503.408.0244
|
|
|
You may also fax us at
503.408.0343
email us at
cd@commercialdishwasher.net
|
|
|
©2001 Commercial Warewashing &
Laundry Systems. All rights reserved.
|
|
|
|
|
SPECIFICATIONS: |
|
|
|
CMA
EST44/EST44EXT
|
USA
|
METRIC
|
|
OPERATION CAPACITY
|
|
|
| RACKS PER HOUR |
249 |
249 |
| CONVEYOR
SPEED |
6.75 FT./MIN. |
206 CM/MIN. |
| WASH PUMP MOTOR HP |
1 HP |
1 HP |
| RINSE PUMP
MOTOR HP |
1/3 |
1/3 |
| CONVEYOR
MOTOR HP |
1/8 |
1/8 |
| WATER INLET
- FILL |
1/2" |
1.27 CM |
| WATER INLET
- FINAL RINSE |
1/2" |
1.27 CM |
| DRAIN SIZE |
2" |
5.1 CM |
| FINAL RINSE
PRESSURE |
20 PSI |
1.14 KG/CM2 |
| WASH TANK CAPACITY |
3 GAL. |
11.4 L |
| PRE-RINSE |
4.25 GAL. |
16 L |
| WASH |
11.75 GAL. |
44.5 L |
| TOTAL |
16 GAL. |
60.5 L |
| WASH PUMP
CAPACITY |
|
|
| EACH |
52 GPM |
197 LPM |
| OPERATING
TEMPATURE |
|
|
| WASH TEMP. |
150 - 160 DEG. F |
66 - 71DEG.C |
| PUMPED RINSE |
160 DEG. F |
71 DEG.C |
| FINAL RINSE |
180-195 DEG. F |
82 - 90 DEG.C |
| OPERATING
TEMPATURE |
|
|
| WASH TEMP. RECOMMENDED |
140 - 150 DEG. F |
60 - 68 DEG. C |
| PUMPED RINSE RECOMMENDED |
140 - 150 DEG. F |
60 - 68 DEG. C |
| FINAL RINSE RECOMMENDED |
140 - 150 DEG. F |
60 - 68 DEG. C |
| WATER CONSUMPTION |
|
|
| PER RACK FINAL RINSE |
0.46 GAL. |
1.7 L |
| PER HOUR FINAL RINSE |
114 GPH |
431 LPH |
| FRAME DIMENSIONS |
|
|
| DEPTH |
25 1/8 INCHES |
64 CM |
| WIDTH |
44 INCHES |
111.7 CM |
| HEIGHT EST 44 |
.55.5 - 56.5 INCHES |
141-143.5CM
|
| HEIGHT EST-44EXT |
61.5 - 62.5 INCHES |
156 - 159 CM |
| STANDARD TABLE HEIGHT |
34 INCHES |
86 CM |
| MAXIMUM CLEARANCE FOR DISHES |
19INCHES |
48 CM |
| STANDARD
DISHRACK |
1 |
1 |
| DIMENSIONS |
19.75" x 19.75" |
50 CM x 50 CM |
| WASH TANK HEATER |
13 Kw @208v 3 PHASE, 13 Kw @240V 1
PHASE, 15 Kw @ 208V (EXT MODEL) |
| WASH TANK HEATER |
3 kw @ 220V |
| ELECTRICAL RATING |
VOLTS |
PHASE |
AMPS |
| |
|
| |
240 |
1 |
80 |
| |
208 |
1 |
55 |
| |
240 |
1 |
62.5 |
| |
480 |
1 |
27 |
| Specify direction of rack travel
(right to left or left to right) when ordering |
| SHIPPING WEIGHT |
|
|
| APPROXIMATE |
662 LBS. |
311 KG |
|
